This is one of the types of MOSFETs and is a kind of transistor.
Part Number: K8A50D, K8A500, TA8A500
Function: Silicon N Channel MOS Type Field Effect Transistor
Package: TO-220 Type
Manufacturer: Toshiba

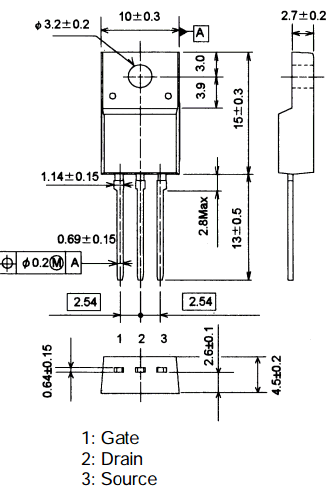

Image :
Description
This is 500V, 8A, N-Channel MOSFET(Metal Oxide Semiconductor Field Effect Transistor).
Correct Part Number K8A50D, Full Part Number TA8A50D.
K8A50D MOSFET is a type of field effect transistor (FET) that uses an N-type semiconductor material as the conducting channel to control the flow of current.
When a positive voltage is applied to the gate terminal, it attracts electrons to the channel, creating an inversion layer and allowing current to flow between the source and drain terminals.
Features
1. Low drain-source ON-resistance: RDS (ON)= 0.7 Ω(typ.)
2. High forward transfer admittance: |Yfs| = 4.0 S (typ.)
3. Low leakage current: IDSS= 10 μA (max) (VDS= 500 V)
4. Enhancement mode: Vth= 2.0 to 4.0 V (VDS= 10 V, ID= 1 mA)
Pinout
Absolute Maximum Ratings (Ta = 25°C)
1. Drain to source voltage: VDSS = 500 V
2. Gate to source voltage: VGSS = ± 30 V
3. Drain current: ID = 8 A
4. Drain Power Dissipation: Pd = 40 W
5. Channel temperature: Tch = 150 °C
6. Storage temperature: Tstg = -55 to +150 °C
Electrical Characteristics
Applications:
1. Switching Regulator
K8A50D Datasheet
